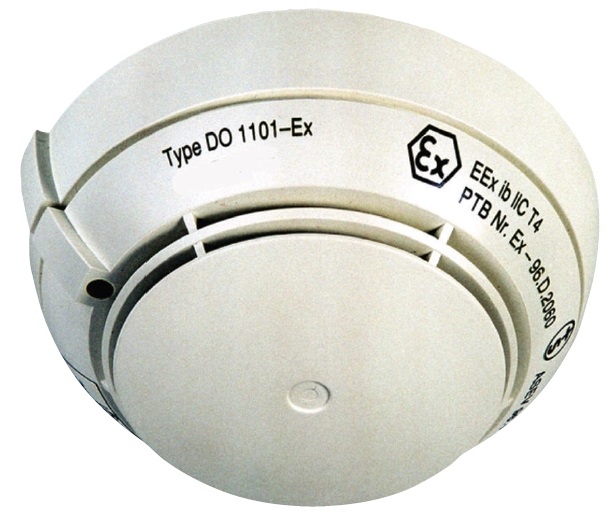

Đầu dò khói chống cháy nổ BOSCH DO1101A-Ex

-       Đầu dò khói cho khu vực chống cháy nổ.

-       Nguồn điện 16-28VDC.

-       Vùng dò khói: 120m²

-       Elegant, compact and robust design

-       Deception-proof operating behaviour

-       High level of resistance to temperature fluctuations, humidity, corrosion and contamination

-       High resistance to interference through current gain

Functions

The optical sensor in the smoke detector uses the scattered-light method. An LED transmits light to the measuring chamber, where it is absorbed by the labyrinth structure. In the event of a fire, smoke enters the measuring chamber and the smoke particles scatter the light from the LED. The amount of light hitting the photo diode is converted into a proportional electrical signal. The entire electronic system is protected inside the detector. The base is only used for the detector contact.

Technical Specifications

Electrical

Operating voltage 16 V DC . . . 28 V DC

Standby current consumption 0.1 mA

Mechanics

Individual display LED red

Connection terminals 0.2 mm2 . . . 2.5 mm2

Dimensions (D x H)

• Detector Ø 116 mm x 51 mm

• Detector incl. base Ø 116 mm x 61 mm

Housing material

• Detector Plastic, ABS

• Base Plastic (ASA)

Color (detector and base) White, RAL 9010

Weight incl. base 185 g

Environmental conditions

Protection class as per EN 60529 IP 43

Permissible operating temperature -25 °C . . . +60°C

Permissible storage temperature -40°C . . . +75°C

Permissible relative humidity ≤ 95%

Planning

Monitoring area as per EN 54‑7 Max. 120 m2 (Heed local guidelines!)

Special features

Detection principle Scattered light measurement

Explosion classification in line with IEC 60079 and EN 50020: Eex ib IIC T4 (Ta ≤ 60 °C)

-       Bảo hành: 12 tháng.
