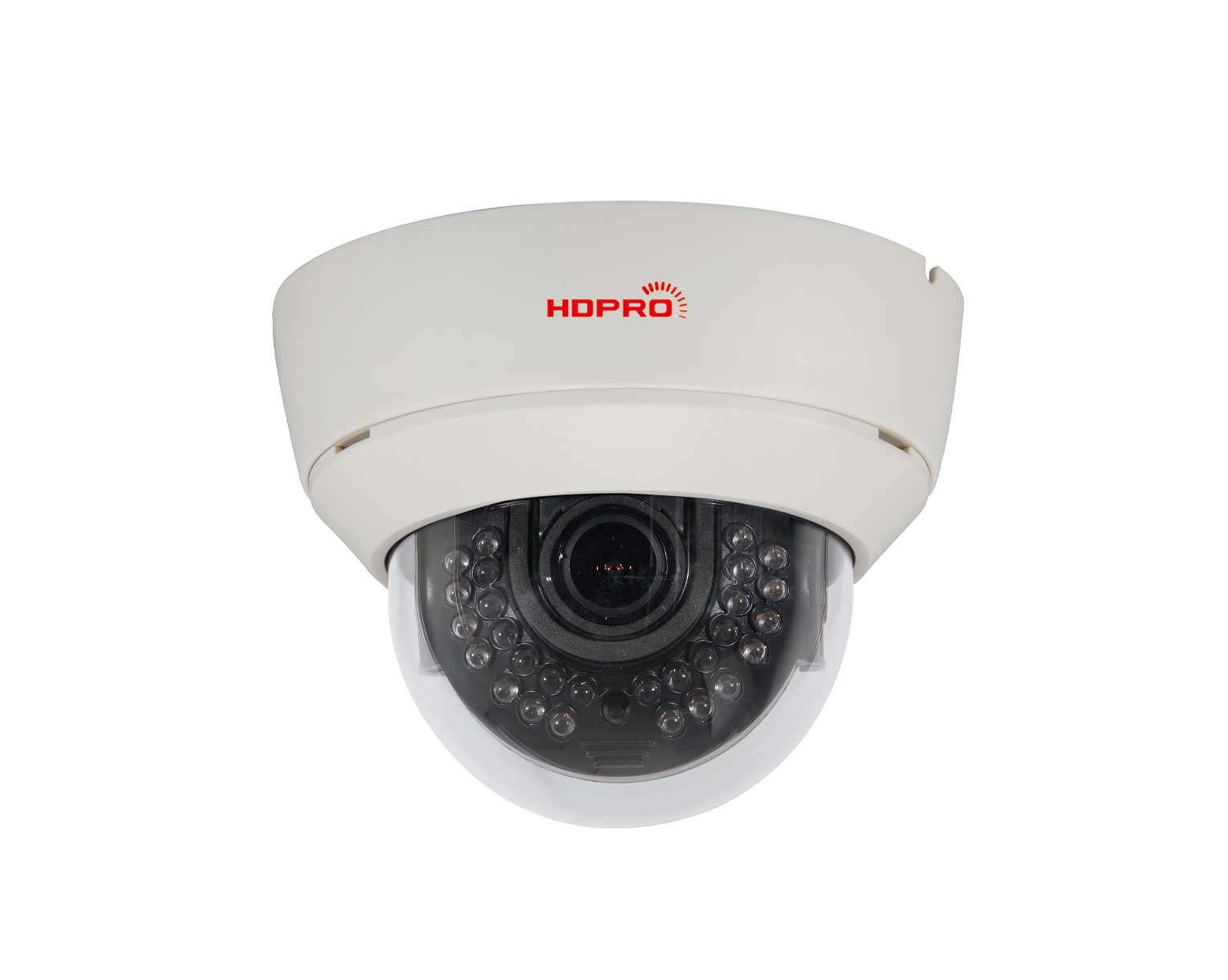

| MODEL |
HD-AH176DTL |
| Image Sensor |
1/3” SONY 1.3Mega Exmor CMOS Sensor |
| Effective Pixels |
1305(H) X 1049(V), 1.37M Pixels |
| Total Pixels |
1312(H) X 1069(V), 1.40M Pixels |
| Scanning System |
Progressive Scan |
| S/N Ratio |
More Than 50dB |
| Resolution |
AHD:1280x720(720p@60fps/720p@50fps), CVBS:1000TVL |
| Video Output |
1.0Vp-p Composite, 75 Ohms |
| Minimum Illumination |
0.001 Lux(Sens-Up X30) |
| OSD |
Built-in |
| BLC |
O |
| HSBLC |
O |
| WDR(Wide Dynamic Range) |
X |
| D-WDR |
O |
| White Balance |
ATW / AWC → Set / Manual / AWB |
| Shutter Speed |
Auto / FLK / 1/60(1/50)Sec ~ 1/50000Sec,X2,X4,X6,X8,X10,X15,X20,X25,X30 |
| Sense-Up |
X2 ~ X30 |
| Brightness |
0 ~ 100, Default:50 |
| AGC |
0 ~ 15 (Level Adjustable), Default:15 |
| Digital Noise Reduction |
2D, 3DNR |
| De-Fog |
O (Position, Area Adjustable) |
| Motion |
On / Off (4 Area) |
| Privacy |
On / Off (4 Area) |
| Mirror |
Mirror, V-FLIP, ROTATE |
| Freeze |
O |
| Sharpness |
0 ~ 10 (Level Adjustable) |
| Day&Night |
Auto / Color / B/W / EXT |
| D-Zoom |
X |
| Defect |
Live DPC / Static DPC (White:2048, Black:128) |
| Lens Shading(LSC) |
O |
| Smart-IR |
O |
| RS-485(Protocol) |
Pelco-C(Option) |
| CVBS Output |
1280H CVBS(NTSC/PAL) / 1280H COMET(NTSC/PAL) |
| Coaxial Communication (UTC) |
O |
| Power |
DC 12V(Dual Voltage)-Option |
| Power Consumption |
IR LED ON:500mA Max |
| Lens |
DC Auto Iris Varifocal Lens(2.8mm-12mm) |
| Operational Temp. |
-10 ~ +50 Deg C. RH 95% Max. |
| Storage Temp. |
-20 ~ +60 Deg C. RH 95% Max. |
| Dimensions |
150mm(W) * 120mm(H) * 150mm(D) |
| Weight |
600g |
