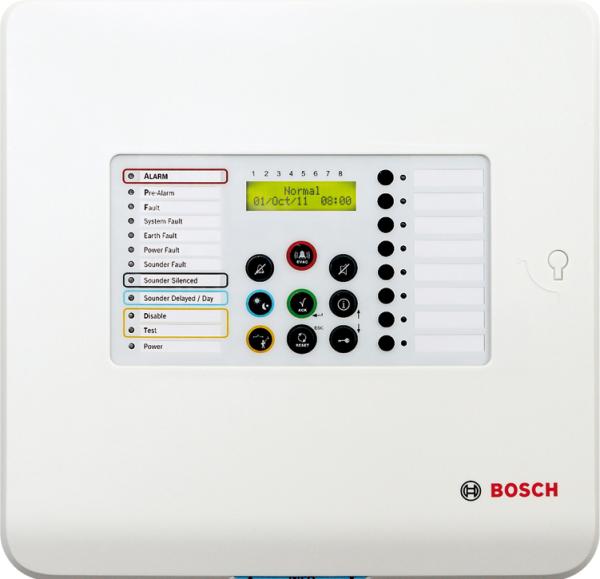

  • BỘ ĐIỀU KHIỂN BÁO CHÁY TRUNG TÂM BOSCH FPC-500-4
  • Giá: 7.316.100 đ
  • Mã số: FPC-500-4
  • Mô tả:

    BỘ ĐIỀU KHIỂN BÁO CHÁY TRUNG TÂM BOSCH FPC-500-4

    - Bộ báo cháy trung tâm 04 vùng. Mỗi vùng có thể dùng được 32 đầu dò báo cháy.

    - Dễ dàng lập trình, vận hành thông qua bàn phím và màn hình hiển thị LCD phía trước.

    - LCD với màn hình chiếu sáng nền và chỉ báo trạng thái cho tất cả các vùng phát hiện báo cháy

    - Biểu tượng rõ ràng giúp vận hành trực quan.

    - Hai chức năng lược sử, mỗi chức năng có thể chứa 1.000 sự kiện, một cho sự kiện liên quan đến vận hành và một cho kiểm tra bảo trì.

    - Được chứng nhận đầy đủ theo tiêu chuẩn EN 54, đặc trưng với chất lượng và độ tin cậy cao của Bosch.

    - Chức năng cuộn tự động giúp dễ dàng kiểm tra cấu hình tổng thể của tủ trung tâm.

    - Dễ dàng lắp đặt, cài đặt, sử dụng và bảo trì.



    Features

    - LCD with backlight screen and status indication for all detector zones.

    - Self-explanatory icons for intuitive operation

    - Two history functions with 1,000 entries each, one for events and the other for walk tests

    - Fully certified according to EN 54, featuring outstanding quality and reliability from Bosch

    - Autoscroll function for easy checking of the overall panel configuration.

    - The Conventional Fire Panel 500 Series ideally meets the needs and expectations of small shops, warehouses, office buildings, schools, and kindergartens…

    - The modern, attractive design and small size of these robust panels make them blend discreetly into the decor.

    - The fire panels of the 500 Series are exceptionally easy to install, custom-configure, and maintain with little or no training. The panels are also selfexplanatory and intuitive, making it quick and easy to teach end users how to operate them.



    Functions

    - Alarm verification

    - Dual-detector dependency

    - Dual-zone dependency

    - Intermediate alarm storage

    - Programmable delays

    - Switching between day and night mode (AV)

    - Event and test history

    - Alarm counter

    Operating levels

    The fire panels have three different operating levels. No access code is required for level 1. Access to level 2 and 3 requires four-digit codes (level 2 also accessible with optional key switch). The access codes for level 2 and 3 can be changed. Different test functions are available. On level 1 LED, buzzer and LCD tests can be run. On level 2 and 3additional tests for zones, outputs and NACs can be run.

    Programming

    You can program the panel easily via the keypad and LCD display. The zones can be configured independently allowing for a perfect tailoring to individual customer needs. The default programming helps getting acquainted quickly with the system and must be modified slightly to fit many applications.



    Specifications

    Detector zones

    4

    Max. number of detectors in accordance with EN 54‑2

    128

    Max. number of detectors per zone in accordance with EN 54‑2

    32

    Max. extension modules

    1

    Prog. inputs

    1

    AUX output

    1

    NAC output

    2

    Relays

    2

    Alarm counter

    999 alarms

    Event history

    1000 events

    Test history

    1000 test events

    Input voltage

    230 VAC +10%/-15%, 50-60 Hz

    Max. current consumption AC

    312 mA

    Power consumption

    80 W

    Operating voltage

    21.4 VDC to 29 VDC

    Imin; Imax, a; Imax, b

    70 mA; 0.7A; 2.3A

    Zones



    voltage

    20 VDC ±1VDC

    current

    max. 100 mA ±5 mA

    max. cable resistance

    22.5 Ω

    AUX



    voltage

    21 VDC to 29 VDC

    current

    500 mA ±10%

    max. cable resistance

    22.5 Ω

    fuse

    0.75 A @ 60 V

    NAC



    voltage

    21 VDC to 29 VDC

    current

    500 mA ±10% each

    fuse

    0.75 A @ 60 V

    max. cable resistance

    22.5 Ω

    Relay outputs



    contact rating

    1 A @ 30 VDC

    max. cable resistance

    22.5 Ω

    OC outputs

    No inductive load.

    contact rating

    20 mA @ 24 VDC

    max. cable resistance

    22.5 Ω

    recommended cable type

    Unshielded cable, 0.8 mm cable diameter to 1.5 mm² cable cross section

    Batteries

    2 x 7.2 Ah (max.)

    max. internal resistance

    800 mΩ

    current consumption

    2.3 A

    Discharge voltage threshold

    21.4 V

    Communication parameters



    NAC



    Normal



    A-

    10 – 15 V

    B+

    0 – 0,5 V

    Alarm



    A-

    0 – 1 V

    B+

    21 – 29 V

    Inputs



    Alarm resistor

    820 Ω ±5%

    End of line resistor

    3.9 kΩ ±1%

    Zone (with resistors)



    Alarm resistor

    820 Ω ±5%910 Ω ±5%No dual-detector dependency: 680 Ω ±5%

    End of line resistor

    3.9 kΩ ±1%

    Zone (with EOL-Module)



    Alarm resistor

    820 Ω ±5%910 Ω ±5%No dual-detector dependency: 680 Ω ±5%

    Dimensions ( H x W x D)

    351 x 351 x 90 mm

    Weight

    2200 g, without batteries

    Housing material



    Front, Back

    ABS+PC, ABS-FR

    Housing color



    Front

    RAL 9003 (signal white)

    Back

    PANTONE 10 C (cool grey)

    Protection class as per IEC 60529

    IP 30

    Protection class as per EN 60950

    II

    EMC emmission

    EN 61000-6-3

    EMC immunity

    EN 50130-4

    Vibrations

    EN 60068-2-6

    Permissible operating temperature

    0°C to +40°C

    Permitted relative humidity

    95% non-condensing

    - Bảo hành: 12 tháng.
